Custom design of big and small inductive components |
 |
3D CAD with optional thermal and mechanical simulation |
 |
Thermographic scan |
 |
Tracing B-H curve to evaluate the components saturation performance
|
 |
Losses Measurements |
 |
Possibility to supply:
- Square wave from 500 Hz to 30 kHz, up to 500V
- AC + DC, with 160 A of max DC current
|
 |

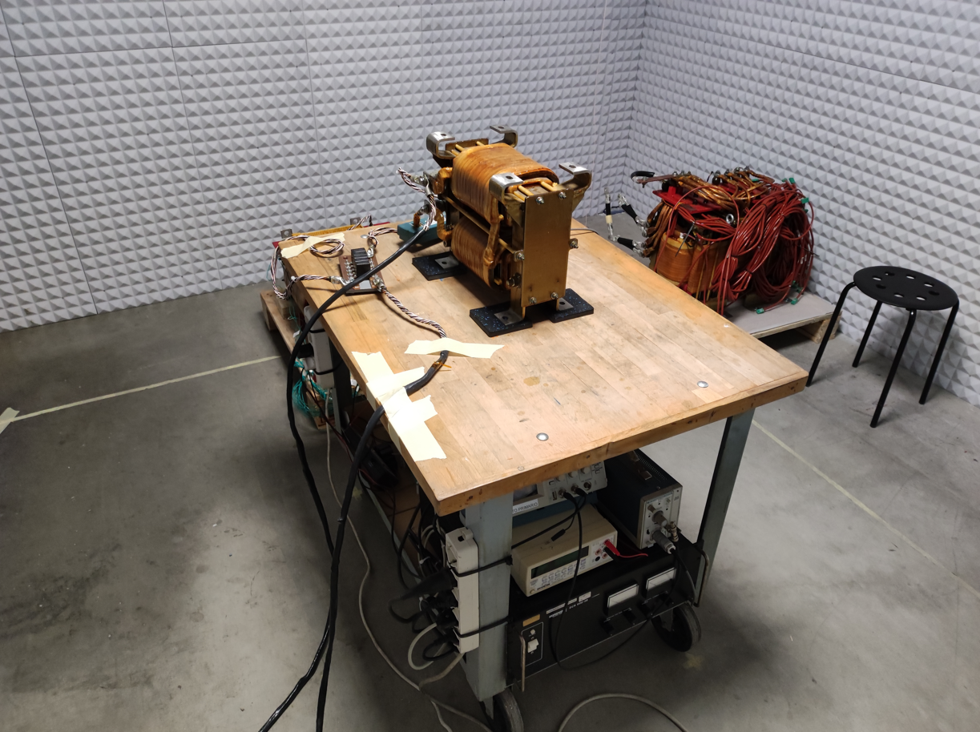

Noise test in a dedicated room (4x4x2,5m) by a Sound Level Meter able to evaluate the frequency analysis and get the sound pressure as well as the power pressure.
|
 |
Hi-Pot test up to 12kV at 50Hz |
 |

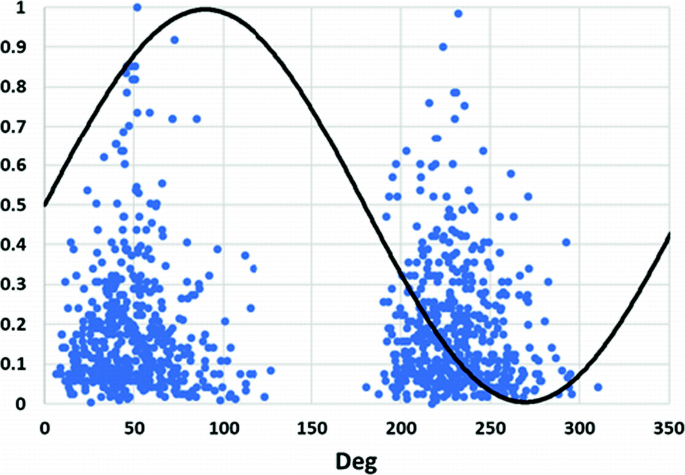

Partial discharge up to 15kV |
 |
EMI measurements |
